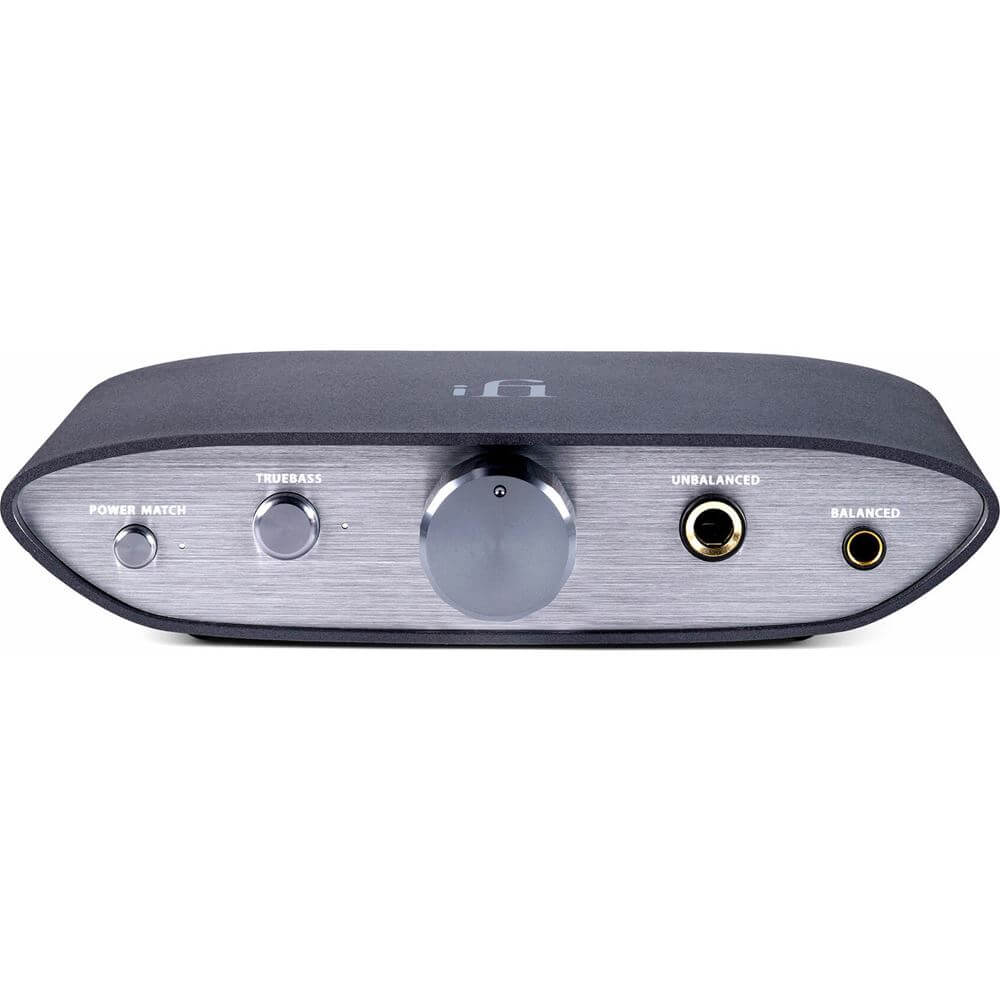

This ZEN DAC V2 is the same award-winning hi-res USB DAC/headphone amp as before but with added oomph!

We’ve upgraded its digital engine from an 8 core XMOS chip to a 16 core chip. It’s ultra-capable while still being super-affordable.

Compact enough to use as a USB DAC/amp on your work desk and stylish enough to use at home with your favourite active speakers or amp, it delivers a level of specification and performance that punches above its super-affordable price tag.

The ZEN DAC V2 supports PCM and DXD to 32-bit/384kHz, DSD256 and MQA. DSD remains ‘bit-perfect’ thanks to the True Native Burr-Brown chip design.

Flexible.
Switch effortlessly between ‘variable’ and ‘fixed’.

Set to ‘Variable,’ use the ZEN DAC V2 as a pre-amp to feed a power amp or active speakers.

On ‘Fixed’ to bypass the volume control. Connect to an external pre-amp or integrated amp.

Ace of Bass.
The ZEN DAC V2 boasts TrueBass. This proprietary tech is a switchable ‘bass boost’ operating in the analogue domain. There’s no DSP with iFi gear.

TrueBass enhances the bass but does not muddy the mid-range. Perfect for use with IEMs or open-back headphones which often lack bass.

The ZEN DAC V2 is the ultimate chilling machine. Tune in and ZEN out.

Ace of Bass.
The ZEN DAC V2 boasts TrueBass. This proprietary tech is a switchable ‘bass boost’ operating in the analogue domain. There’s no DSP with iFi gear.

TrueBass enhances the bass but does not muddy the mid-range. Perfect for use with IEMs or open-back headphones which often lack bass.

The ZEN DAC V2 is the ultimate chilling machine. Tune in and ZEN out.

The HausΜusik company was founded in 2010. It has its headquarters in Marousi, Attica, at 40 Agiou Konstantinou str., in the historic Atrium shopping center. Our personal experience guarantees the ideal solution to the needs of customers in every case. In our 5 years of presence in the market, we have managed to build confidence and trust between our customers, which has been the catalyst for our growth. Our main goal remains to continue improve our services for our customers, to find the most ideal proposals and solutions in combination with your financial data and to maintain the friendly and warm environment that embraces you from the very first moment.

SPECIFICATIONS

  • Ιnput USB3.0 B Socket
  • (USB2.0 compatible)
  • Formats DSD256/128/64, Octa/Quad/Double/Single-Speed DSD DXD(384/352.8kHz), PCM(384/352.8/192/176.4/96/88.2/48/44.1kHz) MQA
  • DAC Bit-Perfect DSD & DXD DAC by Burr Brown
  • Line Section
  • Output Audio RCA (SE) — 2.1V fixed
  • 1V / 3.3V max. (variable)
  • 4.4mm Pentaconn (BAL) — 4.2V fixed
  • 2V / 6.2V max. (variable)
  • Zout <= 200 Ohm (BAL)
    <= 100 Ohm (SE)
  • SNR < -116dB(A) @ 0dBFS (BAL/SE)
  • DNR > 116dB(A) @ -60dBFS (BAL/SE)
  • THD+N < 0.0015% @ 0dBFS (BAL/SE)
  • Headphone Section
  • Output Power (@1% THD) 4.4mm Pentaconn (BAL)
  • 330mW@32 Ohm; 6.6V@600 Ohm;
  • 16 Ohm – 600 Ohm Headphone
  • 6.3mm S-BAL (SE)
  • 230mW@32 Ohm; 3.3V@600 Ohm
  • 16 Ohm – 600 Ohm Headphone
  • Note: Using 5v power. If powered from USB, power output may vary.
  • Output Impedance < 1 Ω (BAL/SE)
  • THD & N < 0.005% (125mW @ 32R)
  • SNR > 113dBA (6.2V BAL/3.3V SE)
  • Power consumption < 1.5W via USB power OR 5v DC (power supply not included)
  • Dimensions 160(w) x 117(d) x 35(h) mm
  • 6.3″ x 4.6″ x 1.4″
  • Weight (Gross) 0.8 kg (1.8 lbs)
  • Warranty period 12 month
