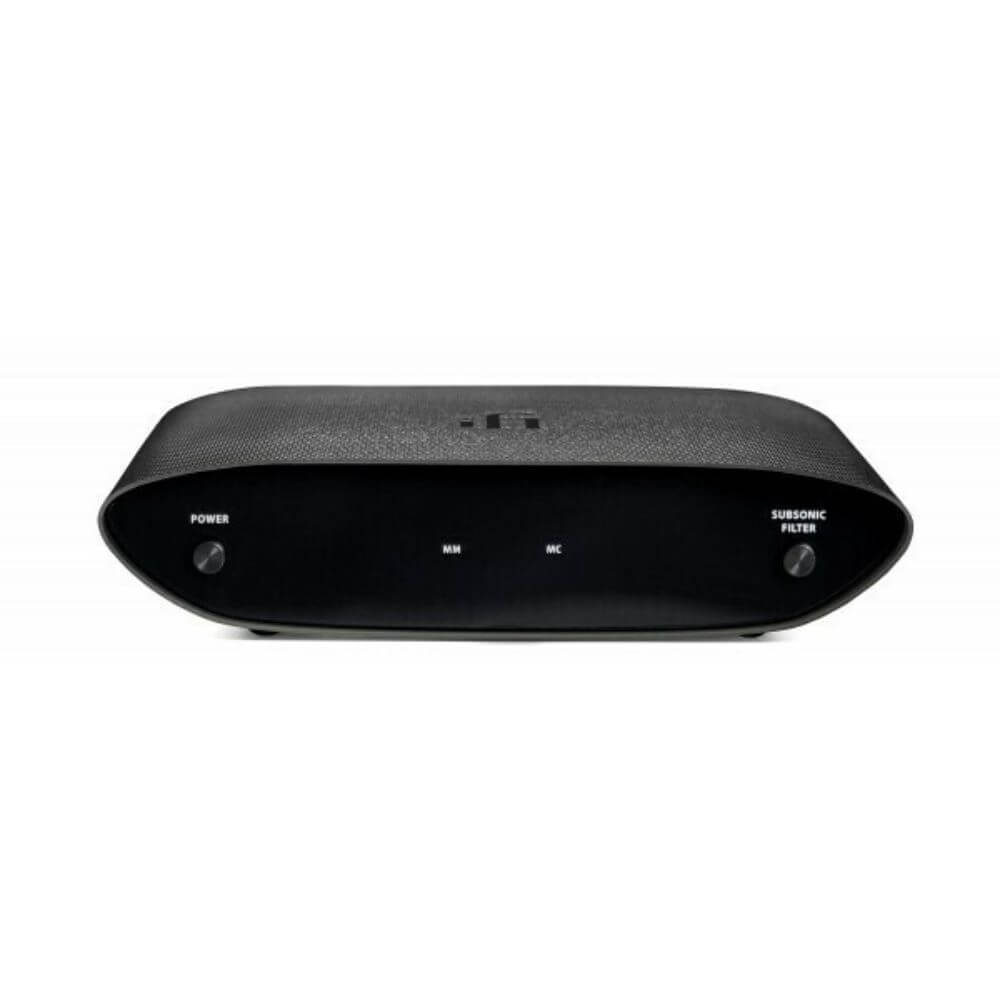

ZEN Air Phono
Enjoy a purer listening experience with the ZEN Air Phono, our super affordable phono stage.

A phono stage, also called a phono pre-amp, provides the connection between the record cartridge/pickup (stylus) and the amplifier.

Turntable cartridges output a very small signal. This signal needs amplifying up to several hundred times the original size before it is loud enough for your amplifier. A phono stage increases the signal level from millivolts to volts.

When vinyl was the standard for audio recording, the phono stage was built-in to receivers and amps, allowing direct connection of a turntable. These days most receivers and amps do not contain a phono stage so a separate unit is needed.

It is a necessity for any turntable without a phono stage already built in. It will also upgrade a basic built-in phono stage in a turntable or amplifier system.

ZEN Air Phono from iFi audio
Purer still
Listening to music on vinyl is good for the soul. It sounds purer than listening to a track via your phone or computer.

Make this experience purer still by reducing hiss, noise and rumble on your records with the ZEN Air Phono.

MC and MM
There are two kinds of turntable cartridge – Moving Magnet and Moving Coil – and the ZEN Air Phono works with both of them.

The MM setting is for cartridges with an output voltage of 2mV and higher.
The MC setting for outputs less than 2mV.
You use the gain switch on the rear to change this setting.

It also has a precise RIAA equalisation setting to satisfy the most demanding vinyl lover.

ZEN Air Phono from iFi audio
Engage warp drive
As we all know, records can become warped with age. With the ZEN Air Phono any warp on your records will be driven away by our ‘subsonic filter’.

Normal subsonic filters remove ‘rumble’ AND bass and cause phase issues.

Our unique AI phono sub-sonic filter removes ‘rumble’ only.

As with many other iFi audio products, we’ve incorporated a custom OV Series operational-amplifier. This top-notch component contributes to the extremely low noise, low distortion (0.0001%) and wide bandwidth.

TDK C0G (Class 1 ceramic) capacitors offer high stability and low losses for resonant circuit applications.

Getting ever closer to the theoretical ideal of pure, frequency-constant capacitance, these capacitors reduce capacitor-induced distortion to vanishingly low levels.

They are pricey but are a perfect addition to our products.

Panasonic ECPU capacitors. Each ECPU capacitor is constructed from some 3,500 layers of ultra-thin dielectrics less than 0.5μm thickness. It offers class-leading Equivalent Series Resistance (ESR), low impedance and frequency stability and vanishingly low distortion.

The HausΜusik company was founded in 2010. It has its headquarters in Marousi, Attica, at 40 Agiou Konstantinou str., in the historic Atrium shopping center. Our personal experience guarantees the ideal solution to the needs of customers in every case. In our 5 years of presence in the market, we have managed to build confidence and trust between our customers, which has been the catalyst for our growth. Our main goal remains to continue improve our services for our customers, to find the most ideal proposals and solutions in combination with your financial data and to maintain the friendly and warm environment that embraces you from the very first moment.

SPECIFICATIONS

  • Power supply requirement DC 5V/1.0A (centre +ve)
  • Frequency Response 20Hz -20kHz (±0.15dB)
  • Channel Separation > 75dB (1kHz all modes)
  • Max Output Voltage RMS6.5V RMS 600Ω(<1% THD & N)
  • Gain MM 40dB / MC 64dB
  • Input Impedance MM 47k / MC 1k
  • Output Impedance 100Ω
  • SNR MM (40dB ±1dB)
  • MC (64dB ±1dB) 86dB (A-weighted) re 1V
  • 82dB (A-weighted) re 1V
  • Ein (equivalent input noise)MC
  • MM 0.6nV | /Hz (unweighted) 6.5nV | /Hz (unweighted)
  • 151dBV (A-weighted)
  • -130dBV (A-weighted)
  • Total Harmonic Distortion MC
  • MM <-80dB / 0.01% re 1V
  • <-90dB / 0.005% re 1V
  • Power Consumption <1.8W
  • Dimensions 158 x 117 x 35 mm
  • 6.2″ x 4.6″ x 1.4″Net weight 320g
  • 0.71 lbs
