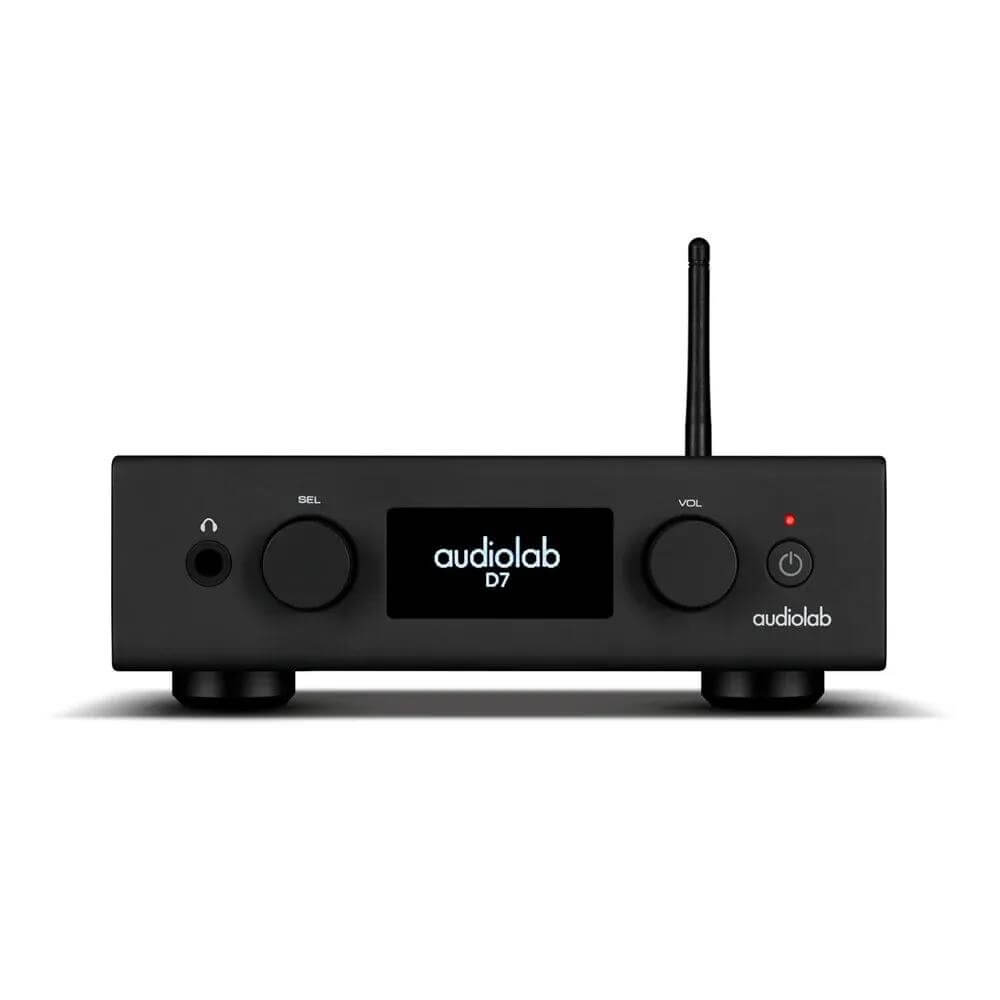

The Audiolab D7 is a high-precision DAC designed to integrate advanced digital conversion technologies into a compact form factor. Equipped with ESS’s top-of-the-line ES9038Q2M 32-bit DAC, it supports high-resolution files via USB (PCM up to 768kHz & DSD up to DSD512), as well as full MQA decoding. With XLR/RCA outputs, built-in Bluetooth 5.1 with aptX/aptX HD and a dedicated headphone amplifier, it is an ideal solution for any Hi-Fi setup, desktop or complete listening system.

Main Features

ES9038Q2M 32-bit DAC from ESS
Supports PCM up to 768kHz and DSD512 via USB
MQA Full Decoder for USB, Coaxial & Optical
Bluetooth 5.1 streaming with aptX & aptX HD
Dedicated current-feedback headphone amplifier
Balanced (XLR) and single-ended (RCA) outputs
OLED display, USB stick playback support (MP3, FLAC, etc.)

The HausΜusik company was founded in 2010. It has its headquarters in Marousi, Attica, at 40 Agiou Konstantinou str., in the historic Atrium shopping center. Our personal experience guarantees the ideal solution to the needs of customers in every case. In our 5 years of presence in the market, we have managed to build confidence and trust between our customers, which has been the catalyst for our growth. Our main goal remains to continue improve our services for our customers, to find the most ideal proposals and solutions in combination with your financial data and to maintain the friendly and warm environment that embraces you from the very first moment.

SPECIFICATIONS

  • Model Audiolab D7
  • DAC Chip ESS ES9038Q2M 32-bit
  • MQA Full decoding (USB, Coax, Optical)
  • Bluetooth connectivity Bluetooth 5.1 with aptX / aptX HD
  • Screen OLED
  • USB HDD support Yes (MP3, WMA, APE, AAC, WAV, FLAC)

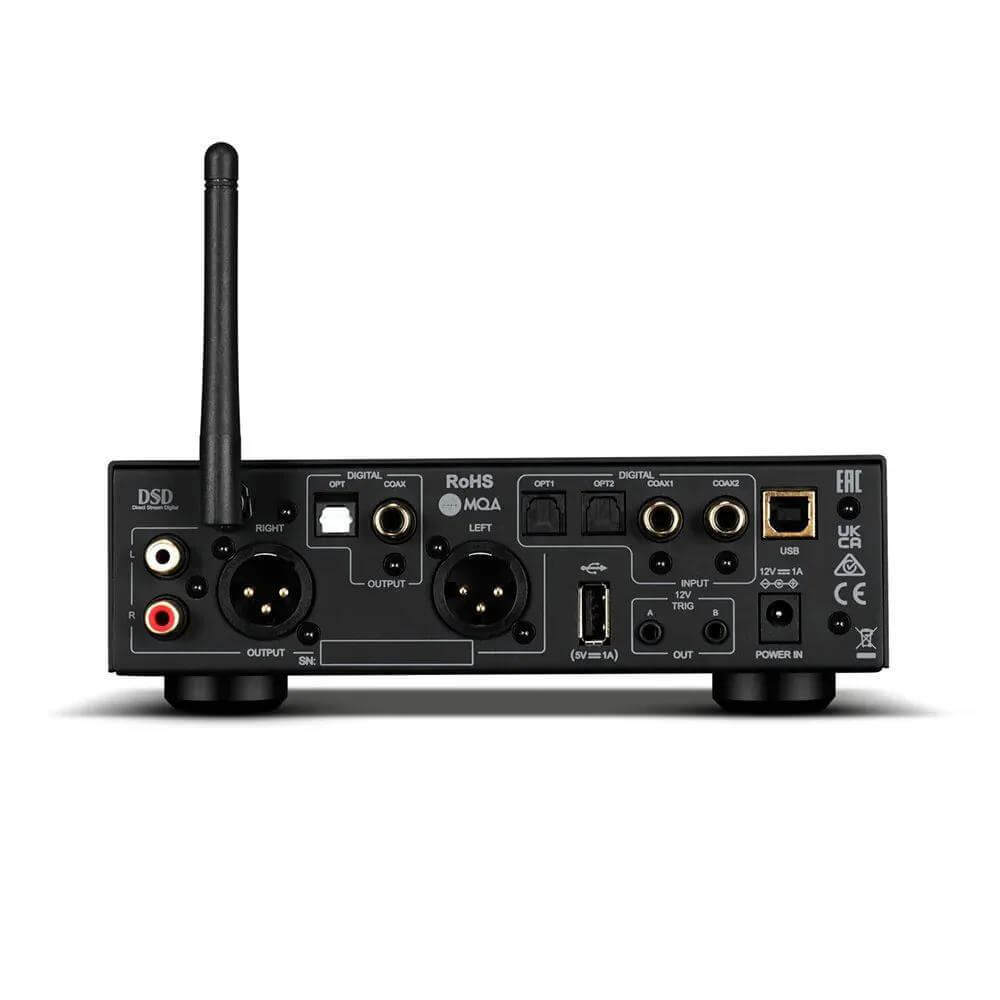

  • Inputs 2 x SPDIF (Coaxial)
  • 2 x SPDIF (Optical)
  • 1 x USB B (PC USB)
  • 1 x USB A (USB HDD)
  • 1 x Bluetooth
  • Exits 1 x RCA
  • 1 x XLR
  • 1 x Headphone
  • 2 x 12V Trigger
  • 1 x Optical
  • 1 x Coaxial
  • Sampling Frequency Optical/Coaxial: 44.1–192kHz
  • USB HDD: 44.1–96kHz
  • PC USB: PCM up to 768kHz, DSD64/128/256/512
  • Output Level (0dBFS @1kHz) 2.05Vrms (RCA), 4.1Vrms (XLR)
  • THD (DAC) < 0.001% (1kHz @ 0dBFS)
  • Frequency Response 20Hz – 20kHz (±0.2dB)
  • Output Impedance 120Ω
  • S/N Ratio >115dB (RCA), >117dB (XLR)
  • Headphone Amplifier Current-feedback, <0.01% THD @ 50mW
  • Output Impedance (HP out) 2.35Ω
  • Load Impedance (HP) 20–600Ω
  • Standby consumption < 0.5W
  • Dimensions (W x D x H) 180 × 208 × 56mm
  • Net/gross weight 1.42kg / 2.2kg
  • Catering 100–120V or 220–240V, 50/60Hz
  • Accompanying Power supply, remote control, user manual
